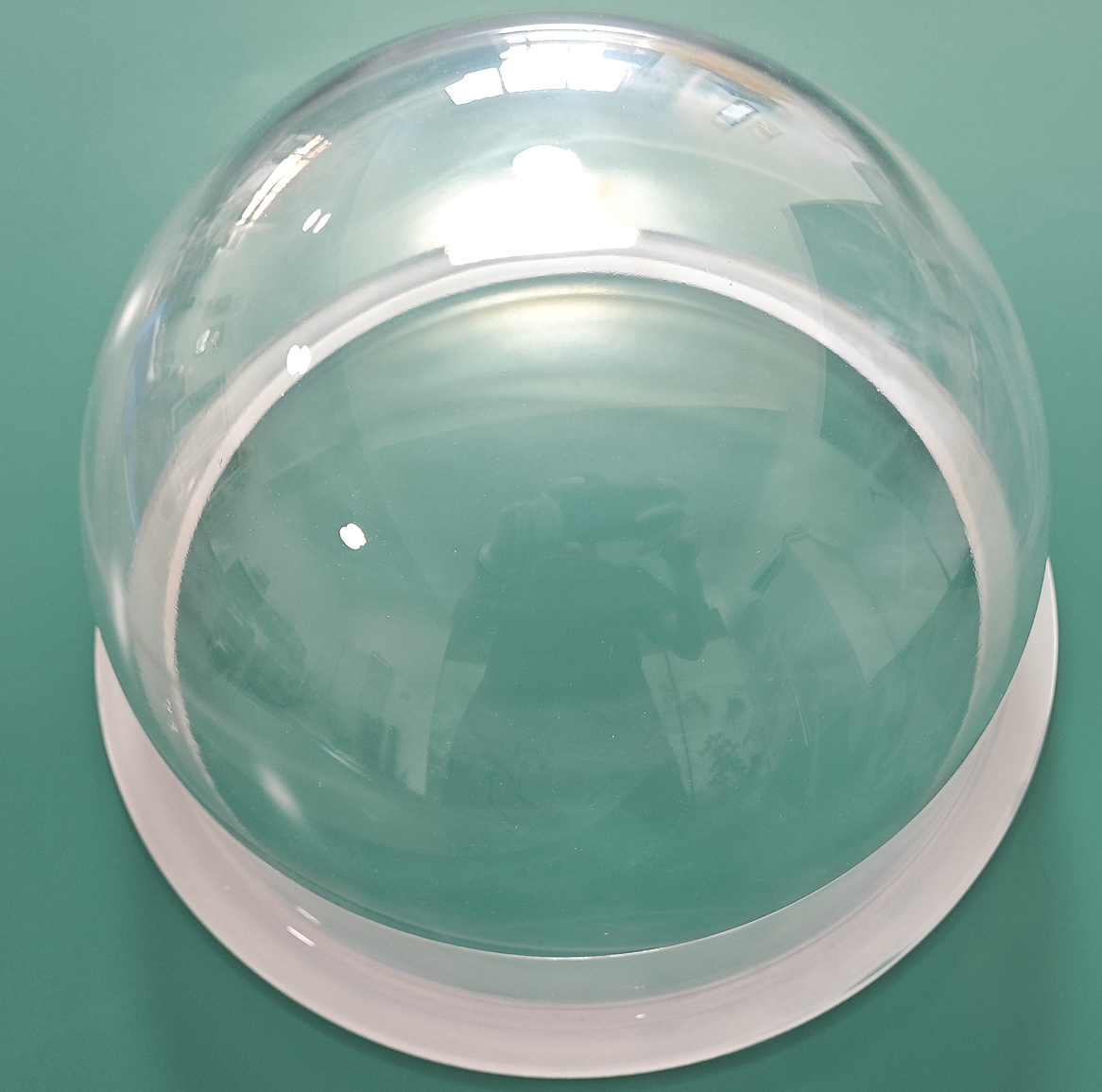

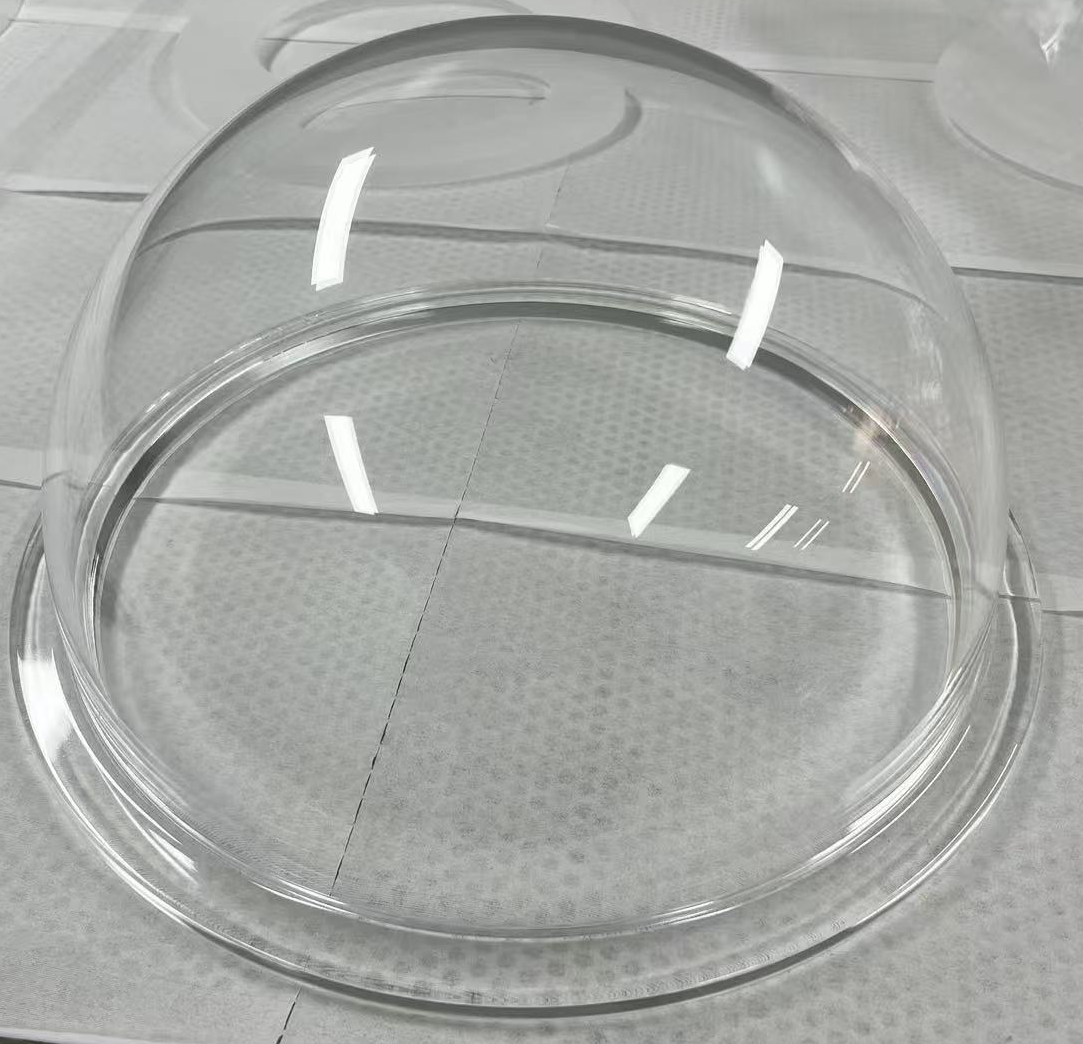

Quartz Bell Jar

I. Core Material Selection: Ultimate Purity for Harsh Operating Conditions
Selected high-purity synthetic quartz glass (purity ≥99.999%) with impurities (metal ions, hydroxyl groups) strictly controlled below ppm levels, eliminating wafer contamination risks at the source. Materials are precisely chosen based on specific process requirements:

Etching / PECVD Equipment: Quartz material resistant to fluorine- and chlorine-based plasma bombardment, offering 40% improved corrosion resistance and preventing particle generation from chamber wall delamination;

High-Temperature Annealing Equipment: Low-hydroxyl quartz (hydroxyl content ≤10ppm), capable of enduring prolonged baking at 1200°C without crystallization or deformation.

II. Precision Dimensional and Geometric Tolerance Control: Seamless Fit Ensures Vacuum Sealing
Leveraging CNC precision machining and laser inspection technology, micrometer-level accuracy is achieved to ensure perfect alignment with chamber flanges:

Dimensional Tolerances: Outer diameter tolerance ≤±0.05mm, wall thickness tolerance ≤±0.03mm, compatible with various equipment slot installation requirements;

Geometric Tolerances: Roundness error ≤0.02mm, perpendicularity error ≤0.01mm/m, flatness ≤0.005mm, eliminating vacuum leakage caused by deformation;

Edge Finishing: Chamfer polishing (chamfer radius R0.5–R1.0mm) prevents sharp edges from scratching sealing gaskets, enhancing sealing reliability.

III. Surface Treatment and Cleanroom Process: Ultra-Low Particle Count Meets Extreme Cleanliness Standards
Surface Polishing: Both inner and outer walls undergo precision chemical and physical polishing, achieving surface roughness Ra≤0.01μm, minimizing adsorption and residue of process gases and plasma;

Cleaning Process: Full-cycle procedure including ultrasonic cleaning, plasma decontamination, ultra-pure water rinsing, and Class 100 vacuum drying, resulting in ≤3 particles per piece (≥0.5μm), meeting advanced semiconductor cleanroom standards;

Protective Coating: Optional SiO₂ anti-reflective coating or Y₂O₃ anti-corrosion coating enhances plasma resistance and extends service life by 30%–50%.

IV. Typical Applications and Customization Services
1. Main Application Scenarios
Etching Tools: Used as upper chamber covers, isolating RF fields from external environments to ensure stable plasma distribution;

PECVD Equipment: Provides uniform reaction chamber space; high transmittance enables efficient RF energy penetration, supporting even thin-film deposition;

Ion Implanters: Vacuum isolation cover resistant to ion beam bombardment, maintaining ultra-high vacuum within the chamber.

2. Customization Capabilities
Size Customization: Supports custom bell-jar diameters, heights, and flange configurations for 4–12 inch wafer equipment;

Structural Customization: Integrated designs such as observation windows, gas inlets/outlets, and electrode mounting holes can be tailored to customer needs;

Process Customization: For special corrosive environments, material modification and coating optimization solutions are provided to match diverse process requirements.

V. Core Advantages and Value Proposition
High Reliability: Resistant to temperature, corrosion, and vacuum conditions, suitable for 24/7 continuous operation in semiconductor equipment;

Low Defect Rate: Dual assurance from high purity and cleanroom processing significantly reduces yield loss due to bell-jar contamination;

High Cost Efficiency: Customized manufacturing combined with comprehensive after-sales support, including refurbished part services, substantially lowers procurement and maintenance costs.

Quartz bell jars, engineered to the highest material and process standards, provide a robust protective barrier for semiconductor vacuum processes, driving quality and efficiency in advanced chip manufacturing!
